使用Kube-Prometheus搭建kubernetes可观测平台

在 Kubernetes 环境中，可观测性是确保集群健康和优化性能的关键因素。Kube-Prometheus 是一个强大的开源工具组合，它集成了 Prometheus、Alertmanager 和 Grafana，帮助用户全面监控 Kubernetes 集群。本篇文章将介绍如何使用 Kube-Prometheus 搭建一个 Kubernetes 可观测平台。

1. Kube-Prometheus 介绍

Kube-Prometheus 提供一套完整的 Kubernetes 监控解决方案，包括：

Prometheus: 负责收集、存储和查询指标数据。
Alertmanager: 处理报警规则并发送通知。
Grafana: 提供可视化仪表板展示监控数据。
Node Exporter & Kube State Metrics: 提供节点和 Kubernetes 资源的状态信息。

2. 安装 Kube-Prometheus

以下步骤将指导你如何在 Kubernetes 集群中部署 Kube-Prometheus：

2.1 克隆 Kube-Prometheus 仓库

bash

1
2


git clone https://github.com/prometheus-operator/kube-prometheus.git
cd kube-prometheus

2.2 部署 CRD

Kube-Prometheus 依赖 Custom Resource Definitions (CRDs)，首先需要安装：

bash

1
2


kubectl apply -f manifests/setup
kubectl wait --for condition=Established --timeout=60s crd --all

2.3 部署监控组件

执行以下命令安装 Prometheus、Alertmanager 和 Grafana：

bash

1

kubectl apply -f manifests/

安装完成后，你可以查看相关的 Pods：

bash

1

kubectl get pods -n monitoring

使用skopeo同步镜像文件

1
2
3


#在manifetst目录下
 grep "image: " * -r | awk -F 'image: ' '{print $2}' > images.list
  for image in $(cat images.list); do  skopeo copy docker://${image} docker://10.7.20.12:5000/${image#*/} --insecure-policy --dest-tls-verify=false; done

3. 访问 Grafana

Grafana 是 Kube-Prometheus 默认的可视化工具，执行以下命令获取 Grafana 的访问方式：

bash

1

kubectl port-forward svc/grafana 3000:3000 -n monitoring

在浏览器中访问 http://localhost:3000 并使用默认账号 admin/admin 登录。

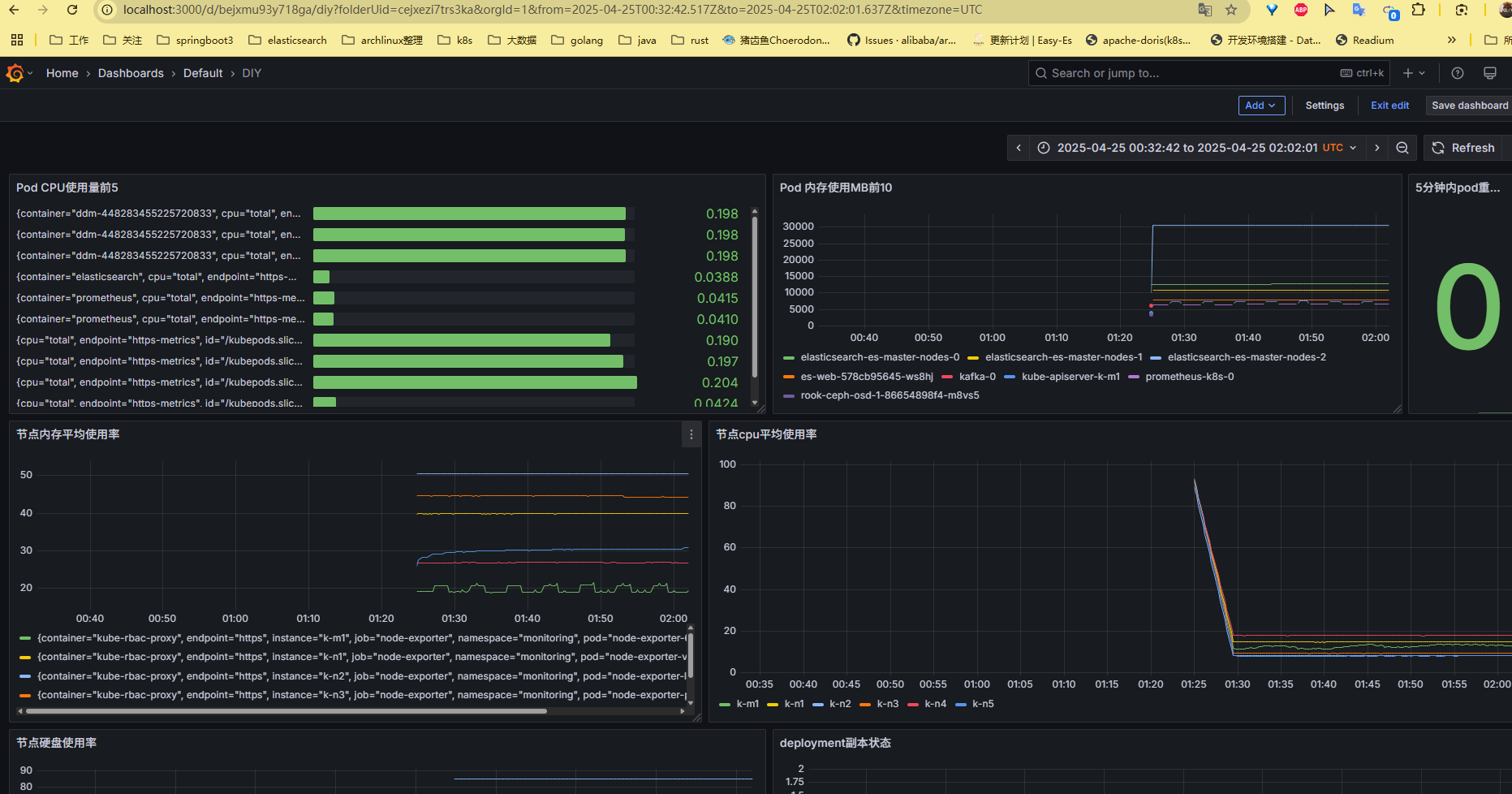

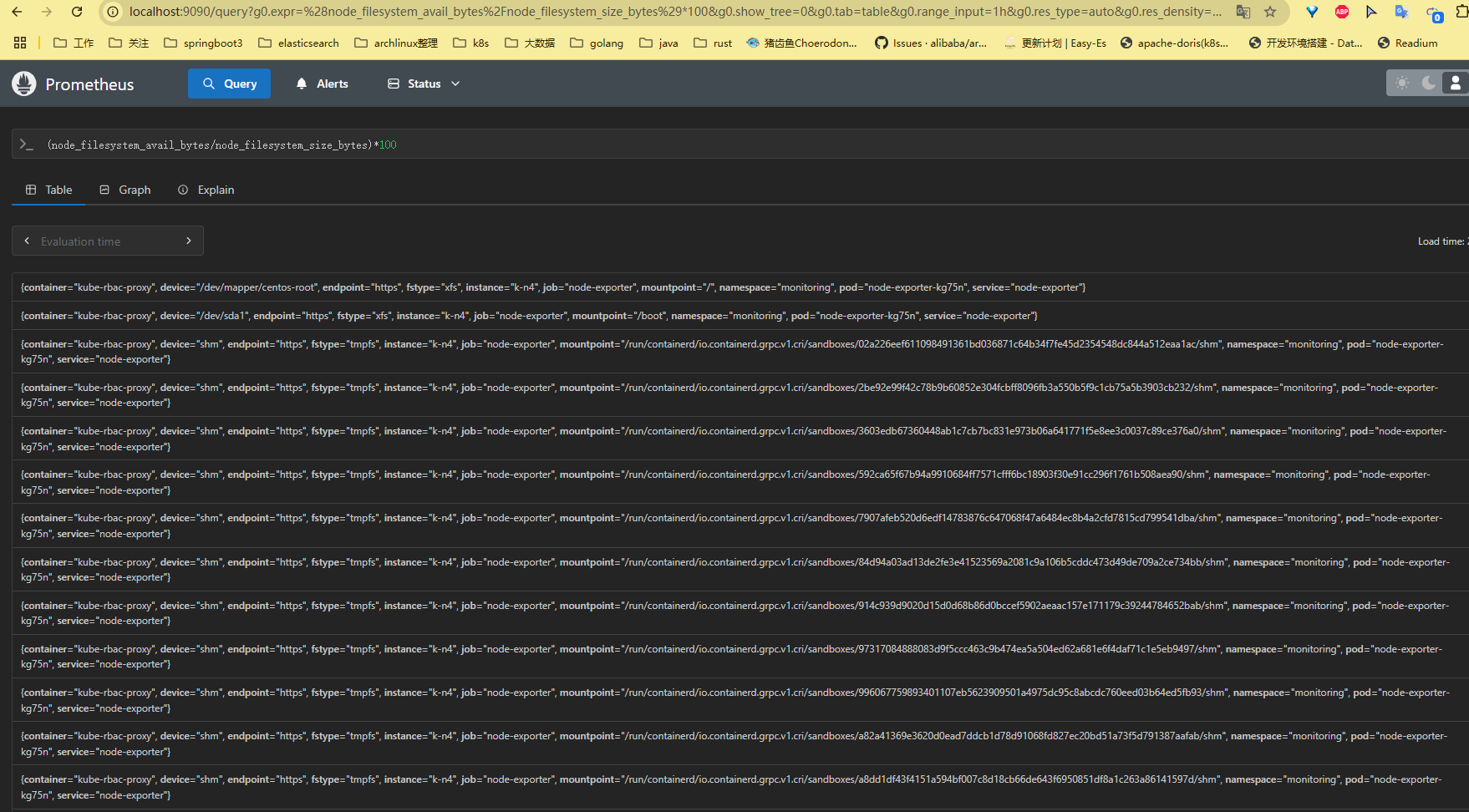

自己根据规则生成一个dashboard
