In Kubernetes parlance, an Operator is a software component, usually deployed in a cluster, that manages the lifecycle of a set of resources. It extends the native set of controllers, such as replicaset and job controllers, to manage complex or interrelated components as a single-managed unit.
Let’s look at a few common use cases where operators are used:

    Enforce best practices when deploying applications to a cluster
    Keep track and recover from accidentally removing/changing resources used by an application
    Automate housekeeping tasks associated with an application, such as regular backups and cleanups
    Automate off-cluster resource provisioning — for example, storage buckets and certificates
    Improve application developers’ experience when interacting with Kubernetes in general
    Improve overall security by allowing users to manage only application-level resources instead of low-level ones such as pods and deployments
    Expose application-specific resources (a.k.a. Custom Resource Definitions) as Kubernetes resources

This last use case is quite interesting. It allows a solution provider to leverage the existing practices around regular Kubernetes resources to manage application-specific resources. The main benefit is that anyone adopting this application can use existing infrastructure-as-code tools.

To give us an idea of the different kinds of available operators, we can check the OperatorHub.io site(https://operatorhub.io/). There, we’ll find operators for popular databases, API managers, development tools, and others.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

A **Kubernetes Operator** is a method of packaging, deploying, and managing a Kubernetes application. It extends the Kubernetes API to manage the lifecycle of complex applications on behalf of a Kubernetes user. Here are some key points about Kubernetes Operators:

1. **Automation**: Operators automate the deployment, scaling, and management of applications. [They encapsulate the operational knowledge of a human operator into code, allowing for more consistent and reliable management of applications](https://kubernetes.io/zh/docs/concepts/extend-kubernetes/operator/)[1](https://kubernetes.io/zh/docs/concepts/extend-kubernetes/operator/).

2. **Custom Resources**: Operators use custom resources to manage applications and their components. [These custom resources extend the Kubernetes API, enabling the Operator to manage the application lifecycle](https://kubernetes.io/docs/concepts/extend-kubernetes/operator/)[2](https://kubernetes.io/docs/concepts/extend-kubernetes/operator/).

3. **Control Loop**: Operators follow Kubernetes principles, notably the control loop. [This means they continuously monitor the state of the application and make adjustments to ensure the desired state is maintained](https://kubernetes.io/docs/concepts/extend-kubernetes/operator/)[2](https://kubernetes.io/docs/concepts/extend-kubernetes/operator/).

4. [**Examples of Use**: Operators can automate tasks such as deploying applications, taking and restoring backups, handling upgrades, and simulating failures to test resilience](https://kubernetes.io/docs/concepts/extend-kubernetes/operator/)[2](https://kubernetes.io/docs/concepts/extend-kubernetes/operator/).


Would you like to know more about how to implement or use a specific Operator in your projects?

[](https://kubernetes.io/zh/docs/concepts/extend-kubernetes/operator/)[1](https://kubernetes.io/zh/docs/concepts/extend-kubernetes/operator/): [](https://kubernetes.io/zh/docs/concepts/extend-kubernetes/operator/)[2](https://kubernetes.io/docs/concepts/extend-kubernetes/operator/):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

metadata:
  namespace: default
  name: advanced-ingress
spec:
  image: flink:1.17
  flinkVersion: v1_17
  ingress:
    template: 'flink.k8s.io/{{namespace}}/{{name}}(/|$)(.*)'
    className: 'nginx'
    annotations:
      nginx.ingress.kubernetes.io/rewrite-target: '/$2'

1
2
3
4
5

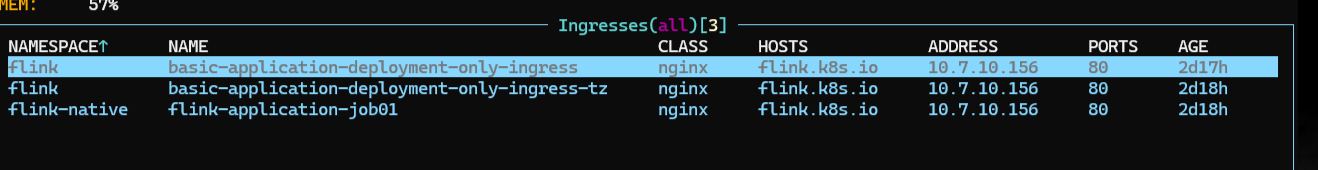

[root@k8s01 k8s_yaml]# kubectl get svc -n flink
NAME                                                TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)             AGE
basic-application-deployment-only-ingress-tz        ClusterIP   None           <none>        6123/TCP,6124/TCP   18h
basic-application-deployment-only-ingress-tz-rest   ClusterIP   10.96.17.230   <none>        8081/TCP            18h
flink-operator-webhook-service                      ClusterIP   10.96.139.50   <none>        443/TCP             19h

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /$2
  name: basic-application-deployment-only-ingress-tz
  namespace: flink
spec:
  ingressClassName: nginx
  rules:
  - host: flink.k8s.io
    http:
      paths:
      - backend:
          service:
            name: basic-application-deployment-only-ingress-tz-rest
            port:
              number: 8081
        path: /flink/basic-application-deployment-only-ingress-tz(/|$)(.*)
        pathType: ImplementationSpecific

1
2
3
4
5
6

<operator.sdk.version>4.8.3</operator.sdk.version>
<dependency>
    <groupId>io.javaoperatorsdk</groupId>
    <artifactId>operator-framework</artifactId>
    <version>${operator.sdk.version}</version>
</dependency>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

在 Kubernetes 中，**调解**（Reconciliation）是指一种持续、周期性地检查和修复资源状态的过程，以确保实际状态符合用户期望的状态。这个过程通常由自定义控制器或操作员（Operator）实现，最终的目的是让实际的集群状态与声明性配置保持一致。

调解过程主要涉及以下几点：
1. **获取当前状态**：控制器从 Kubernetes 集群中获取资源的当前状态（通常是通过观察相应的自定义资源）。
2. **与期望状态进行比较**：比较当前状态与期望状态之间的差异。
3. **采取行动**：基于差异，采取必要的行动来使实际状态符合期望状态，例如创建、更新或删除资源等。

在 Kubernetes Operator SDK 中，`Reconciler` 接口的 `reconcile` 方法用于执行这种调解操作。当 Kubernetes API 服务器检测到自定义资源（CR）的变更时，框架会调用 `reconcile` 方法来调整资源状态。

**例子**：
- 如果一个自定义控制器负责管理一个应用程序的部署资源，调解器会在检测到自定义资源的期望副本数与当前实际副本数不同步时，调整部署的副本数，使其达到预期的配置。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

Kubernetes finalizers 确保在资源标记为删除后，在资源实际被删除之前，你的 Reconciler 有机会执行操作。如果没有 finalizers，资源将直接被 Kubernetes 服务器删除。

根据你的使用情况，你可能需要或不需要使用 finalizers 。特别是，如果你的 operator 不需要清理任何`不会被 Kubernetes 集群自动管理的状态`（例如，外部资源），你可能不需要使用 Finalizer。你应该尽可能使用 Kubernetes 垃圾回收机制，通过为你的 `secondary resources` 设置所有者引用，这样当关联的`primary resource`被删除时，集群就会自动删除它们。需要注意的是，设置所有者引用是 Reconciler 实现的责任，尽管依赖资源使该过程变得更容易。

如果确实需要清理这种状态，你需要使用 finalizers ，以防止 Kubernetes 集群在你的 operator 准备好允许删除资源之前将其删除。这样，即使`你的 operator 在用户“删除”资源时处于停机状态，清理仍然可以进行`。

JOSDK 通过在需要时自动处理管理 finalizers ，以这种方式清理资源变得更容易。你唯一需要做的就是让 SDK 知道你 operator 的 `primary resources` 实现 `Cleaner<P>` 接口。如果你的 Reconciler 没有实现 `Cleaner` 接口，SDK 将认为你在资源删除时不需要执行任何清理，并因此不会启用 finalizers support 。换句话说，只有当你的 Reconciler 实现了 `Cleaner` 接口时，才会添加 finalizers support。

框架会在创建资源之后，第一次协调之前，自动添加 finalizers 。finalizers 是通过单独的 Kubernetes API 调用添加的。由于这次更新，finalizers 将出现在资源上。然后，reconciliation 可以像往常一样进行。

在 Reconciler 上执行清理后，自动添加的 finalizers 也将被删除。如上所述，这种行为是可自定义的，当我们讨论使用 DeleteControl 时有解释。

1
2
3
4

1.搭建 Java Operator 项目，是否有项目脚手架 ? ，像 `Go Kubebuilder Cli` 那样。
有项目脚手架，但没必要，因为它跟普通的java main 项目一样
2.Java Operator 项目如何调试?
像 java main 项目一样，可直接在 Idea 中启动 main() 即可。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

<dependency>
    <groupId>io.fabric8</groupId>
    <artifactId>kubernetes-client</artifactId>
    <version>6.8.1</version>
</dependency>
<dependency>
    <groupId>io.javaoperatorsdk</groupId>
    <artifactId>operator-framework</artifactId>
    <version>4.8.3</version>
</dependency>

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165

import com.javamain.operator.flinkingresseye.K8sClientSingleton;
import io.fabric8.kubernetes.api.model.ObjectMeta;
import io.fabric8.kubernetes.api.model.ObjectMetaBuilder;
import io.fabric8.kubernetes.api.model.Service;
import io.fabric8.kubernetes.api.model.networking.v1.*;
import io.fabric8.kubernetes.client.dsl.Resource;
import io.javaoperatorsdk.operator.api.reconciler.*;
import org.apache.commons.lang3.StringUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.text.MessageFormat;
import java.util.HashMap;
import java.util.Map;

@ControllerConfiguration(namespaces = Constants.WATCH_ALL_NAMESPACES)
public class FlinkIngressReconciler implements Reconciler<Service>, ErrorStatusHandler<Service>, Cleaner<Service> {
    private static final Logger logger = LoggerFactory.getLogger(FlinkIngressReconciler.class);

    @Override
    public UpdateControl<Service> reconcile(Service service, Context<Service> context) {
        if (service == null) {
            return UpdateControl.noUpdate();
        }
        String serviceName = service.getMetadata().getName();
        String namespace = service.getMetadata().getNamespace();
        /*
            因为 Flink Job 会创建 2个 service，所以，根据 “-rest” 特征, 去掉一个
            为啥选用，-rest ，因为 在 Ingress 绑定 rest service, 还有 它绑定时 Flink Web UI
         */
        if (!serviceName.contains("-rest")) {
            return UpdateControl.noUpdate();
        }
        if (!isFlinkServiceAndCheckLabelsAppIsValid(service)) {
            return UpdateControl.noUpdate();
        }
        String jobName = getServiceLabelValue(service, "app");

        Ingress existingIngress = getIngressByName(namespace, jobName).get();
        if (existingIngress != null) {
            // 若存在，也不去更新
            return UpdateControl.noUpdate();
        }
        logger.info("Creating Ingress for Service: {}", serviceName);
        // 构建或更新 Ingress 资源
        Ingress ingress = buildIngressFromService(service);
        K8sClientSingleton.getKubernetesClient().
                network().v1().ingresses().inNamespace(namespace).create(ingress);
        return UpdateControl.noUpdate();
    }

    @Override
    public ErrorStatusUpdateControl<Service> updateErrorStatus(Service service, Context<Service> context, Exception e) {
        // 错误处理逻辑
        return ErrorStatusUpdateControl.noStatusUpdate();
    }

    /*
        检查是否是 Flink Service
        type: flink-native-kubernetes
     */
    private boolean isFlinkServiceAndCheckLabelsAppIsValid(Service service) {
        Map<String, String> labels = getServiceLabels(service);
        boolean isFlinkService = labels != null &&
                labels.containsKey("type") &&
                "flink-native-kubernetes".equalsIgnoreCase(labels.get("type"));
        /*
            观察 Flink Kubernetes Operator 的 ingress 创建的 name 与 Flink Job name 一样，
            所以取 labels 的 app 值 赋值给 ingress name
         */
        boolean appIsValid = labels.containsKey("app") && StringUtils.isNotBlank(labels.get("app"));
        return isFlinkService && appIsValid;
    }

    private Map<String, String> getServiceLabels(Service service) {
        return service.getMetadata().getLabels();
    }

    private Resource<Ingress> getIngressByName(String namespace, String jobName) {
        Resource<Ingress> ingressResource = K8sClientSingleton.getKubernetesClient().
                network().
                v1().
                ingresses().
                inNamespace(namespace).
                withName(jobName);
        return ingressResource;
    }

    /**
     * 获取给定 Service 的某个标签值
     */
    public String getServiceLabelValue(Service service, String labelKey) {
        Map<String, String> labels = getServiceLabels(service);
        return labels != null ? labels.get(labelKey) : null;
    }

    private Ingress buildIngressFromService(Service service) {
        String serviceName = service.getMetadata().getName();
        String namespace = service.getMetadata().getNamespace();
        Map<String, String> labels = service.getMetadata().getLabels();
        String jobName = labels.get("app");

        // 设置注释
        Map<String, String> annotations = new HashMap<>();
        annotations.put("nginx.ingress.kubernetes.io/rewrite-target", "/$2");

        // 构建 Ingress metadata
        ObjectMeta ingressMetadata = new ObjectMetaBuilder()
                .withName(jobName)
                .withNamespace(namespace)
                .withAnnotations(annotations)
                .build();

        String path = MessageFormat.format("/{0}/{1}(/|$)(.*)", namespace, jobName);
        ServiceBackendPort port = new ServiceBackendPort();
        port.setNumber(8081);

        // 构建 Ingress spec
        IngressSpec ingressSpec = new IngressSpecBuilder()
                .withIngressClassName("nginx")
                .withRules(new IngressRuleBuilder()
                        .withHost("flink.k8s.io")
                        .withHttp(new HTTPIngressRuleValueBuilder()
                                .withPaths(new HTTPIngressPathBuilder()
                                        .withPath(path)
                                        .withPathType("ImplementationSpecific")
                                        .withNewBackend()
                                        .withService(new IngressServiceBackendBuilder()
                                                .withName(serviceName)
                                                .withPort(port)
                                                .build())
                                        .endBackend()
                                        .build())
                                .build())
                        .build())
                .build();

        // 构建 Ingress
        return new IngressBuilder()
                .withMetadata(ingressMetadata)
                .withSpec(ingressSpec)
                .build();
    }

    @Override
    public DeleteControl cleanup(Service service, Context<Service> context) {
        if (isFlinkServiceAndCheckLabelsAppIsValid(service)) {
            String namespace = service.getMetadata().getNamespace();
            String serviceName = service.getMetadata().getName();
            if (!serviceName.contains("-rest")) {
                return DeleteControl.defaultDelete();
            }
            String jobName = getServiceLabelValue(service, "app");
            Ingress existingIngress = getIngressByName(namespace, jobName).get();
            K8sClientSingleton.getKubernetesClient().
                    network().
                    v1().ingresses().inNamespace(namespace)
                    .withName(jobName)
                    .delete(existingIngress);
            logger.info("ingress was deleted");
        }
        // 注意：若不符合过滤条件，则按照 默认删除方式，确保移除 finalizer
        return DeleteControl.defaultDelete();
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

import io.javaoperatorsdk.operator.Operator;

public class Runner {
    public static void main(String[] args) {
            // 创建 Operator 实例
            Operator operator = new Operator();
            // 注册 Reconciler
            operator.register(new FlinkIngressReconciler());
            // 启动 Operator
            operator.start();
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

import io.fabric8.kubernetes.client.KubernetesClient;
import io.fabric8.kubernetes.client.KubernetesClientBuilder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class K8sClientSingleton {
    private static final Logger logger = LoggerFactory.getLogger(K8sClientSingleton.class);
    // 暂不考虑 config
    private static final KubernetesClient KUBERNETES_CLIENT = new KubernetesClientBuilder().build();

    private K8sClientSingleton() {
    }

    public static KubernetesClient getKubernetesClient() {
        return KUBERNETES_CLIENT;
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

apiVersion: flink.apache.org/v1beta1
kind: FlinkDeployment
metadata:
  name: basic-application-deployment-only
spec:
  image: flink:1.17
  flinkVersion: v1_17
  flinkConfiguration:
    taskmanager.numberOfTaskSlots: '2'
  serviceAccount: flink
  jobManager:
    resource:
      memory: '1024m'
      cpu: 1
  taskManager:
    resource:
      memory: '1024m'
      cpu: 1
  job:
    jarURI: local:///opt/flink/examples/streaming/StateMachineExample.jar
    parallelism: 2
    upgradeMode: stateless

1
2

[root@k8s01 job_yaml]# kubectl -n flink apply -f  basic-application-deployment-only.yaml
flinkdeployment.flink.apache.org/basic-application-deployment-only created

1
2
3

[root@k8s01 job_yaml]# kubectl get ingress -n flink
NAME                                CLASS   HOSTS          ADDRESS       PORTS   AGE
basic-application-deployment-only   nginx   flink.k8s.io   10.96.36.74   80      2m50s

1
2

[root@k8s01 job_yaml]# kubectl -n flink delete -f basic-application-deployment-only.yaml
flinkdeployment.flink.apache.org "basic-application-deployment-only" deleted

1

[ FlinkIngressReconciler.java:162 ] - [ INFO ]  ingress was deleted

1

mvn clean package

1
2
3
4

FROM openjdk:11-jre-slim
WORKDIR /opt
COPY target/javamain-k8sOperator-1.0-SNAPSHOT.jar /opt/javamain-k8sOperator-1.0-SNAPSHOT.jar
ENTRYPOINT ["java", "-jar", "/opt/javamain-k8sOperator-1.0-SNAPSHOT.jar"]

1
2
3
4
5

# 打包镜像（符合 harbor 私服路径）
docker build -t harbor01.io/yzhou/flink-ingresseye-operator:0.0.1 .

# 推送到 仓库
docker push harbor01.io/yzhou/flink-ingresseye-operator:0.0.1

1
2
3
4
5

apiVersion: v1
kind: ServiceAccount
metadata:
  name: flink-ingresseye-operator-sa
  namespace: flink

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: flink-ingresseye-operator-role
rules:
  - apiGroups: ['', 'networking.k8s.io']
    resources: ['services', 'ingresses']
    verbs: ['get', 'list', 'watch', 'create', 'update', 'delete']

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: flink-ingresseye-operator-role-binding
subjects:
  - kind: ServiceAccount
    name: flink-ingresseye-operator-sa
    namespace: flink
roleRef:
  kind: ClusterRole
  name: flink-ingresseye-operator-role
  apiGroup: rbac.authorization.k8s.io

1
2
3
4
5

[root@k8s01 operator]# kubectl -n flink apply -f service-account.yaml
serviceaccount/flink-ingresseye-operator-sa created
[root@k8s01 operator]# kubectl -n flink apply -f role-binding.yaml
clusterrole.rbac.authorization.k8s.io/flink-ingresseye-operator-role created
clusterrolebinding.rbac.authorization.k8s.io/flink-ingresseye-operator-role-binding created

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

apiVersion: apps/v1
kind: Deployment
metadata:
  name: flink-ingresseye-operator
  namespace: flink
spec:
  replicas: 1
  selector:
    matchLabels:
      app: flink-ingresseye-operator
  template:
    metadata:
      labels:
        app: flink-ingresseye-operator
    spec:
      serviceAccountName: flink-ingresseye-operator-sa
      containers:
        - name: flink-ingresseye-operator
          image: harbor01.io/yzhou/flink-ingresseye-operator:0.0.1
          imagePullPolicy: Always

1
2

[root@k8s01 operator]# kubectl -n flink apply -f deployment.yaml
deployment.apps/flink-ingresseye-operator created

1
2

[root@k8s01 operator]# kubectl get pod -n flink |grep ingress
flink-ingresseye-operator-56d7458559-ckrc7   1/1     Running   0               92s

1
2
3
4
5
6
7
8

[root@k8s01 operator]# kubectl logs -n flink --tail=500 --follow flink-ingresseye-operator-56d7458559-ckrc7
2024-05-09 18:06:22  [ BaseConfigurationService.java:61 ] - [ WARN ]  Configuration for reconciler 'flinkingressreconciler' was not found. Known reconcilers: None.
2024-05-09 18:06:22  [ BaseConfigurationService.java:83 ] - [ INFO ]  Created configuration for reconciler com.javamain.operator.flinkingresseye.way1.FlinkIngressReconciler with name flinkingressreconciler
2024-05-09 18:06:22  [ Operator.java:243 ] - [ INFO ]  Registered reconciler: 'flinkingressreconciler' for resource: 'class io.fabric8.kubernetes.api.model.Service' for namespace(s): [all namespaces]
2024-05-09 18:06:22  [ Operator.java:147 ] - [ INFO ]  Operator SDK 4.8.3 (commit: 8d100b8) built on 2024-04-15T14:15:19.000+0000 starting...
2024-05-09 18:06:22  [ Operator.java:153 ] - [ INFO ]  Client version: 6.8.1
2024-05-09 18:06:22  [ Controller.java:336 ] - [ INFO ]  Starting 'flinkingressreconciler' controller for reconciler: com.javamain.operator.flinkingresseye.way1.FlinkIngressReconciler, resource: io.fabric8.kubernetes.api.model.Service
2024-05-09 18:06:23  [ Controller.java:348 ] - [ INFO ]  'flinkingressreconciler' controller started

1
2

2024-05-09 18:11:29  [ FlinkIngressReconciler.java:46 ] - [ INFO ]  Creating Ingress for Service: basic-application-deployment-only-rest
2024-05-09 18:12:18  [ FlinkIngressReconciler.java:162 ] - [ INFO ]  ingress was deleted
