安装istio

如果在 K8S 集群中安装 Istio，最后则是通过官方 demo bookinfo 简单展示 Istio 如何使用。

本文主要为 Istio 环境部署，暂时不管 Isito 是怎么用的，怎么实现的，先跑起来再说。

文章分为三部分：

  • 1）安装 K8S 集群
  • 2）安装 Istio
  • 3）部署官方 Demo 体验 Istio

2. Istio 安装

getting-start

下载 Istio

下载 Istio，可以去 release 页面 手动下载并解压，或者通过官方提供的脚本自动下载解压：

1

curl -L https://istio.io/downloadIstio | sh -

国内网络问题，脚本大概率下载不动，需要手动下载。

1

wget https://github.com/istio/istio/releases/download/1.18.1/istio-1.20.1-linux-amd64.tar.gz tar -zxvf istio-1.20.1-linux-amd64.tar.gz

压缩包里包含以下内容

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

[root@vela istio-1.20.1]# ll
drwxrwxrwx    - xfhuang xfhuang  8 Dec  2023  bin
drwxrwxrwx    - xfhuang xfhuang  9 Jan 15:32  example_certs1
drwxrwxrwx    - xfhuang xfhuang  9 Jan 15:33  example_certs2
.rwxrwxrwx  11k xfhuang xfhuang  8 Dec  2023  LICENSE
.rwxrwxrwx  956 xfhuang xfhuang  8 Dec  2023  manifest.yaml
drwxrwxrwx    - xfhuang xfhuang  8 Dec  2023  manifests
.rwxrwxrwx 6.6k xfhuang xfhuang  8 Dec  2023  README.md
drwxrwxrwx    - xfhuang xfhuang  8 Dec  2023  samples
drwxrwxrwx    - xfhuang xfhuang  8 Dec  2023  tools

各个目录的作用：

  • bin：存放的是 istioctl 工具
  • manifests：相关 yaml 用于部署 Istio 的
  • samples：一些 Demo 用的 yaml
  • tools：一些工具，暂时使用不到

先将istioctl工具 cp 到 bin 目录下，便于后续使用 istioctl 命令。

1

sudo cp bin/istioctl /usr/local/bin/

安装 Istio

由于易用性的问题，Istio 废弃了以前的 Helm 安装方式，现在使用 istioctl 即可一键安装。

Istio 提供了以下配置档案（configuration profile）供不同场景使用，查看当前内置的 profile：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

$  istioctl profile list
Istio configuration profiles:
    ambient
    default
    demo
    empty
    external
    minimal
    openshift
    preview
    remote

具体每个 profile 包含哪些组件，可以使用istioctl profile dump命令查看：

1

$ istioctl profile dump demo

输出比较多，就不展示了

对于演示环境，我们直接安装 demo 版本就可以了

1

istioctl install --set profile=demo -y

安装可能需要一些时间，耐心等待即可,安装完成后，输出如下：

1
2
3
4
5
6

 istioctl install --set profile=demo -y
Error: failed to install manifests: errors occurred during operation: creating default tag would conflict:
Error [IST0139] (MutatingWebhookConfiguration istio-sidecar-injector) Webhook overlaps with others: [istio-revision-tag-default/namespace.sidecar-injector.istio.io]. This may cause injection to occur twice.
Error [IST0139] (MutatingWebhookConfiguration istio-sidecar-injector) Webhook overlaps with others: [istio-revision-tag-default/object.sidecar-injector.istio.io]. This may cause injection to occur twice.
Error [IST0139] (MutatingWebhookConfiguration istio-sidecar-injector) Webhook overlaps with others: [istio-revision-tag-default/rev.namespace.sidecar-injector.istio.io]. This may cause injection to occur twice.
Error [IST0139] (MutatingWebhookConfiguration istio-sidecar-injector) Webhook overlaps with others: [istio-revision-tag-default/rev.object.sidecar-injector.istio.io]. This may cause injection to occur twice.

报错了

1
2
3
4
5
6

kubectl get MutatingWebhookConfiguration
NAME                                           WEBHOOKS   AGE
cert-manager-webhook                           1          89d
flink-operator-default-webhook-configuration   1          89d
istio-revision-tag-default                     4          97d
istio-sidecar-injector

1

kubectl delete MutatingWebhookConfiguration istio-revision-tag-default

再来一次执行

1
2
3
4
5
6

 istioctl install --set profile=demo -y
✔ Istio core installed
✔ Istiod installed
✔ Egress gateways installed
✔ Ingress gateways installed
✔ Installation complete                                                                                                                         Made this installation the default for injection and validation.

部署完成后，还有很重要的一步：

给命名空间打上 label，告诉 Istio 在部署应用的时候，自动注入 Envoy 边车代理：

1

kubectl label namespace default istio-injection=enabled

验证是否安装成功

安装后可以验证是否安装正确。

1
2
3
4
5
6

# 先根据安装的profile导出manifest
istioctl manifest generate --set profile=demo > $HOME/generated-manifest.yaml
# 然后根据验证实际环境和manifest文件是否一致
istioctl verify-install -f $HOME/generated-manifest.yaml
# 出现下面信息则表示验证通过
✔ Istio is installed and verified successfully

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

 istioctl verify-install -f $HOME/generated-manifest.yaml
✔ CustomResourceDefinition: authorizationpolicies.security.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: destinationrules.networking.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: envoyfilters.networking.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: gateways.networking.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: istiooperators.install.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: peerauthentications.security.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: proxyconfigs.networking.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: requestauthentications.security.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: serviceentries.networking.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: sidecars.networking.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: telemetries.telemetry.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: virtualservices.networking.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: wasmplugins.extensions.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: workloadentries.networking.istio.io.istio-system checked successfully
✔ CustomResourceDefinition: workloadgroups.networking.istio.io.istio-system checked successfully
✔ ServiceAccount: istio-egressgateway-service-account.istio-system checked successfully
✔ ServiceAccount: istio-ingressgateway-service-account.istio-system checked successfully
✔ ServiceAccount: istio-reader-service-account.istio-system checked successfully
✔ ServiceAccount: istiod.istio-system checked successfully
✔ ClusterRole: istio-reader-clusterrole-istio-system.istio-system checked successfully
✔ ClusterRole: istiod-clusterrole-istio-system.istio-system checked successfully
✔ ClusterRole: istiod-gateway-controller-istio-system.istio-system checked successfully
✔ ClusterRoleBinding: istio-reader-clusterrole-istio-system.istio-system checked successfully
✔ ClusterRoleBinding: istiod-clusterrole-istio-system.istio-system checked successfully
✔ ClusterRoleBinding: istiod-gateway-controller-istio-system.istio-system checked successfully
✔ ValidatingWebhookConfiguration: istio-validator-istio-system.istio-system checked successfully
✔ ConfigMap: istio.istio-system checked successfully
✔ ConfigMap: istio-sidecar-injector.istio-system checked successfully
✔ MutatingWebhookConfiguration: istio-sidecar-injector.istio-system checked successfully
✔ Deployment: istio-egressgateway.istio-system checked successfully
✔ Deployment: istio-ingressgateway.istio-system checked successfully
✔ Deployment: istiod.istio-system checked successfully
✔ PodDisruptionBudget: istio-egressgateway.istio-system checked successfully
✔ PodDisruptionBudget: istio-ingressgateway.istio-system checked successfully
✔ PodDisruptionBudget: istiod.istio-system checked successfully
✔ Role: istio-egressgateway-sds.istio-system checked successfully
✔ Role: istio-ingressgateway-sds.istio-system checked successfully
✔ Role: istiod.istio-system checked successfully
✔ RoleBinding: istio-egressgateway-sds.istio-system checked successfully
✔ RoleBinding: istio-ingressgateway-sds.istio-system checked successfully
✔ RoleBinding: istiod.istio-system checked successfully
✔ Service: istio-egressgateway.istio-system checked successfully
✔ Service: istio-ingressgateway.istio-system checked successfully
✔ Service: istiod.istio-system checked successfully
Checked 15 custom resource definitions
Checked 3 Istio Deployments
✔ Istio is installed and verified successfully

查看一下安装了些什么东西：

1
2
3
4
5

 kubectl get pods -n istio-system
NAME                                    READY   STATUS    RESTARTS   AGE
istio-egressgateway-6dc59b5b45-84tlt    1/1     Running   0          2m21s
istio-ingressgateway-654796fd4f-hfvfs   1/1     Running   0          2m21s
istiod-6b6f4654c4-69ws4                 1/1     Running   0          2m25s

可以看到只安装了出入站网关以及最重要的 Istiod 服务。

再看下 CRD 情况

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

 kubectl get crds |grep istio
authorizationpolicies.security.istio.io               2024-01-08T09:28:15Z
destinationrules.networking.istio.io                  2024-01-08T09:28:15Z
envoyfilters.networking.istio.io                      2024-01-08T09:28:15Z
gateways.networking.istio.io                          2024-01-08T09:28:15Z
istiooperators.install.istio.io                       2024-01-08T09:28:16Z
peerauthentications.security.istio.io                 2024-01-08T09:28:15Z
proxyconfigs.networking.istio.io                      2024-01-08T09:28:15Z
requestauthentications.security.istio.io              2024-01-08T09:28:15Z
serviceentries.networking.istio.io                    2024-01-08T09:28:15Z
sidecars.networking.istio.io                          2024-01-08T09:28:15Z
telemetries.telemetry.istio.io                        2024-01-08T09:28:15Z
virtualservices.networking.istio.io                   2024-01-08T09:28:15Z
wasmplugins.extensions.istio.io                       2024-01-08T09:28:15Z
workloadentries.networking.istio.io                   2024-01-08T09:28:15Z
workloadgroups.networking.istio.io                    2024-01-08T09:28:15Z

这些就是 istio 需要用到的 CRD 了，比较常见的比如：

  • gateways
  • virtualservices
  • destinationrules
  • …

部署 Dashboard

3. 部署 bookinfo 应用

官方提供了 bookinfo 应用来演示 Istio 相关功能。

部署应用

1

kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml

输出如下：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

 kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml
service/details unchanged
serviceaccount/bookinfo-details unchanged
deployment.apps/details-v1 unchanged
service/ratings unchanged
serviceaccount/bookinfo-ratings unchanged
deployment.apps/ratings-v1 unchanged
service/reviews unchanged
serviceaccount/bookinfo-reviews unchanged
deployment.apps/reviews-v1 unchanged
deployment.apps/reviews-v2 unchanged
deployment.apps/reviews-v3 unchanged
service/productpage unchanged
serviceaccount/bookinfo-productpage unchanged
deployment.apps/productpage-v1 unchanged

在 default 命名空间创建了应用对应的 service 和 deployment。

服务启动需要一定时间，可通过以下命令进行查看：

1
2
3
4
5
6
7
8
9

 kubectl get pods
NAME                                         READY   STATUS    RESTARTS        AGE
details-v1-698d88b-97bkt                     2/2     Running   0               104m
flink-kubernetes-operator-65d5bf6d48-wcq2j   3/3     Running   74 (6d1h ago)   89d
productpage-v1-675fc69cf-wr4bd               2/2     Running   0               104m
ratings-v1-6484c4d9bb-cvdl8                  2/2     Running   0               104m
reviews-v1-5b5d6494f4-bzqsh                  2/2     Running   0               104m
reviews-v2-5b667bcbf8-4txw6                  2/2     Running   0               104m
reviews-v3-5b9bd44f4-rbhgv                   2/2     Running   0               104m

等 pod 都启动后，通过以下命令测试应用是否正常启动了：

1

kubectl exec "$(kubectl get pod -l app=ratings -o jsonpath='{.items[0].metadata.name}')" -c ratings -- curl -s productpage:9080/productpage | grep -o "<title>.*</title>"

输出以下内容就算成功

1

<title>Simple Bookstore App</title>

部署网关

此时，BookInfo 应用已经部署，但还不能被外界访问。需要借助网关才行

1

kubectl apply -f samples/bookinfo/networking/bookinfo-gateway.yaml

输出如下：

1
2
3

 kubectl apply -f samples/bookinfo/networking/bookinfo-gateway.yaml
gateway.networking.istio.io/bookinfo-gateway unchanged
virtualservice.networking.istio.io/bookinfo unchanged

可以看到， 这里部署了一个网关（gateway）和一个虚拟服务（virtualservice）。

这里不知道也没关系，后续文章会讲的 😁

此时在浏览器中，输入http://localhost/productpage应该可以访问到具体页面了。

外部访问则需要通过 NodePort 访问:

1
2
3
4
5

 kubectl -n  istio-system get svc istio-ingressgateway
NAME                   TYPE           CLUSTER-IP     EXTERNAL-IP   PORT(S)                                                                      AGE
istio-ingressgateway   LoadBalancer   10.233.41.37   <pending>     15021:30882/TCP,80:32746/TCP,443:31231/TCP,31400:32093/TCP,15443:32172/TCP   4m58s
echo http://10.7.20.12:30754/productpage
http://10.7.20.12:30754/productpage

可以看到，80 端口对应的 NodePort 为 32746,那么直接访问的 URL 就是：http://$IP:32746/productpage。

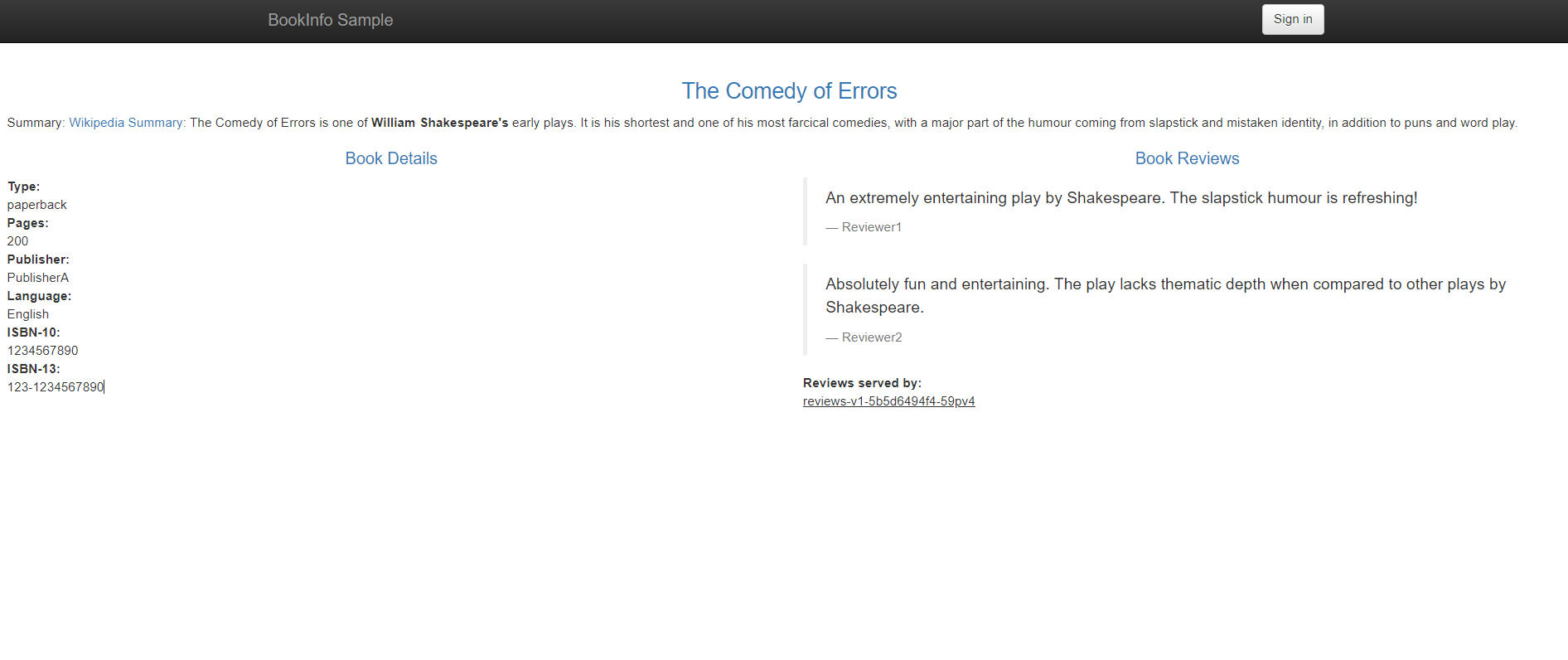

能看到以下界面就算成功：

image-20240415124708602

4. Dashboard

Istio 也提供了 Dashboard，可以通过 UI 界面更加方便的进行管理，安装命令如下：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

 kubectl apply -f samples/addons
serviceaccount/grafana created
configmap/grafana created
service/grafana created
deployment.apps/grafana created
configmap/istio-grafana-dashboards created
configmap/istio-services-grafana-dashboards created
deployment.apps/jaeger created
service/tracing created
service/zipkin created
service/jaeger-collector created
serviceaccount/kiali created
configmap/kiali created
clusterrole.rbac.authorization.k8s.io/kiali-viewer created
clusterrole.rbac.authorization.k8s.io/kiali created
clusterrolebinding.rbac.authorization.k8s.io/kiali created
role.rbac.authorization.k8s.io/kiali-controlplane created
rolebinding.rbac.authorization.k8s.io/kiali-controlplane created
service/kiali created
deployment.apps/kiali created
serviceaccount/loki created
configmap/loki created
configmap/loki-runtime created
service/loki-memberlist created
service/loki-headless created
service/loki created
statefulset.apps/loki created
serviceaccount/prometheus created
configmap/prometheus created
clusterrole.rbac.authorization.k8s.io/prometheus created
clusterrolebinding.rbac.authorization.k8s.io/prometheus created
service/prometheus created
deployment.apps/prometheus created

等待安装完成

1
2

 kubectl rollout status deployment/kiali -n istio-system
deployment "kiali" successfully rolled out

访问 bashboard：

该命令会自动打开浏览器，若失败则手动访问。

外部访问则把 service 改成 nodeport 类型即可

1

kubectl -n istio-system patch svc kiali -p '{"spec":{"type":"NodePort"}}'

查看修改后的端口

1
2
3

 kubectl -n istio-system get svc kiali
NAME    TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)                          AGE
kiali   NodePort   10.233.16.184   <none>        20001:32276/TCP,9090:31874/TCP   99s

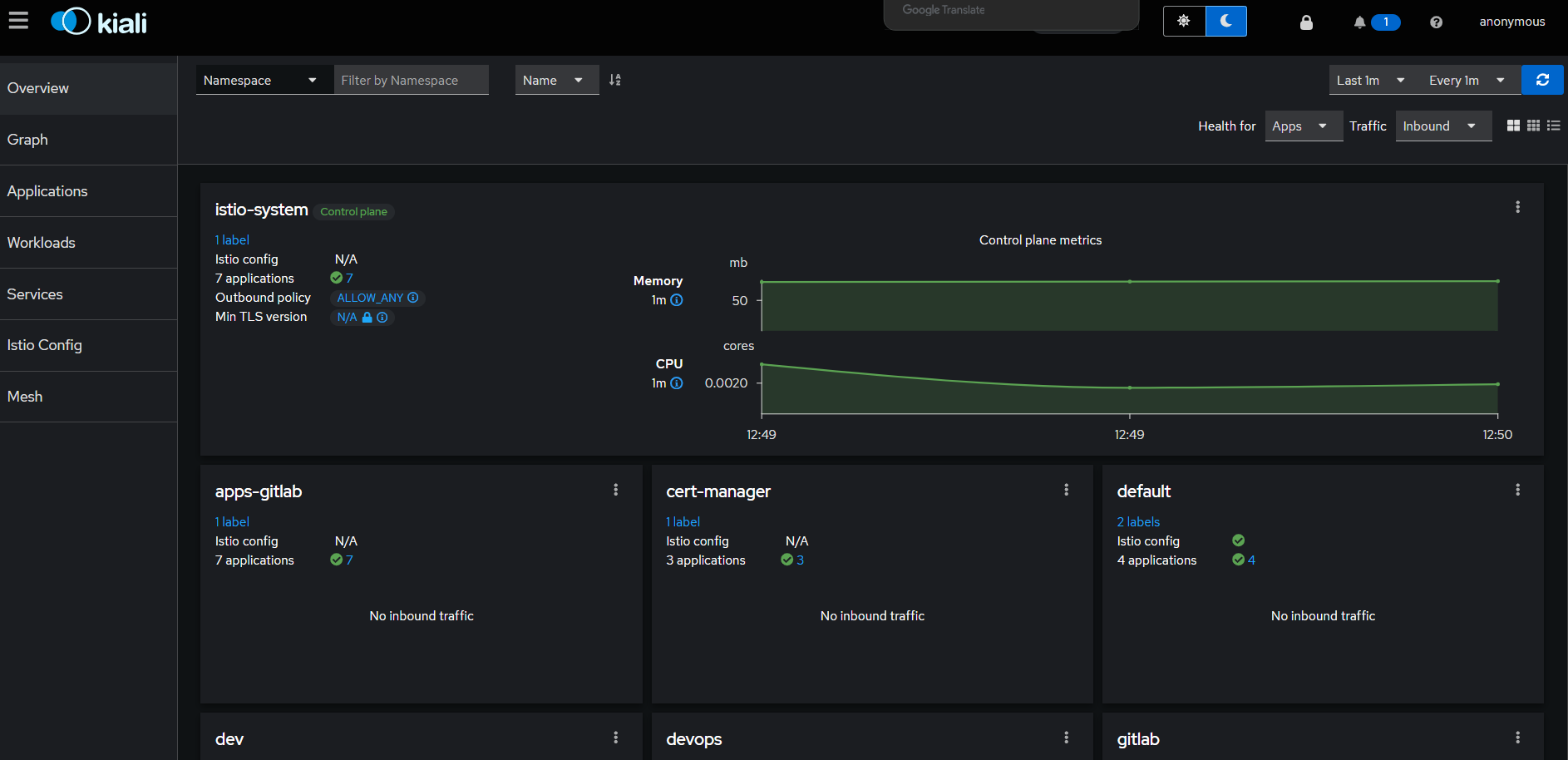

访问 http://$IP:32276 即可，界面长这样：

image-20240415125034944

在主界面可以看到部署的服务以及请求量、资源使用量等情况。

在 Graph 界面则能够看到，服务间流量分发情况。

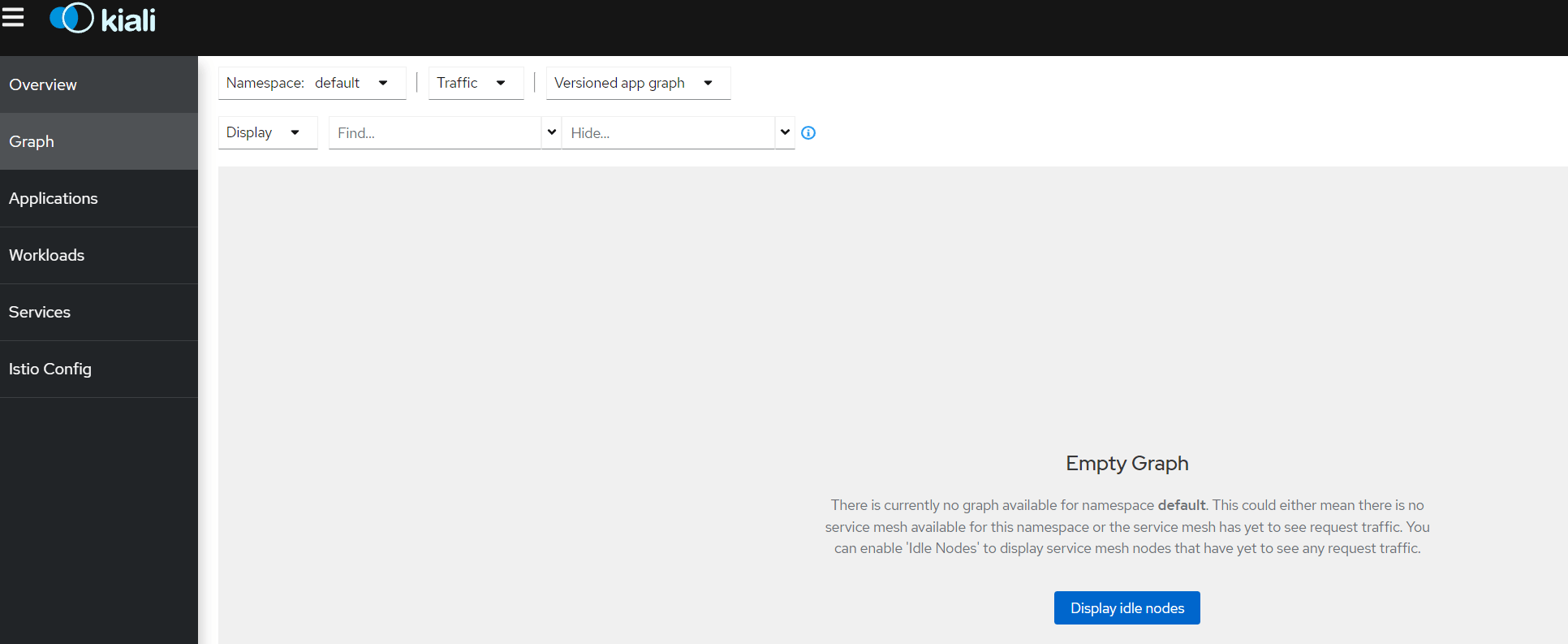

../../../img/istio/install/kiali-graph-empty.png

由于之前部署的 bookinfo 服务没怎么访问，所以界面是空白的，先通过 curl 命令访问一下

1
2
3

clusterIP=$(kubectl -n istio-system get svc istio-ingressgateway -ojsonpath='{.spec.clusterIP}')

for i in $(seq 1 100); do curl -s -o /dev/null "http://$clusterIP:80/productpage"; done

如何确定入站 IP 和端口

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

 kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="http2")].nodePort}'
30754%

 kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="https")].nodePort}'
32360%


 kubectl get po -l istio=ingressgateway -n istio-system -o jsonpath='{.items[0].status.hostIP}'
192.7.20.12%


http://192.7.20.245:30754/productpage

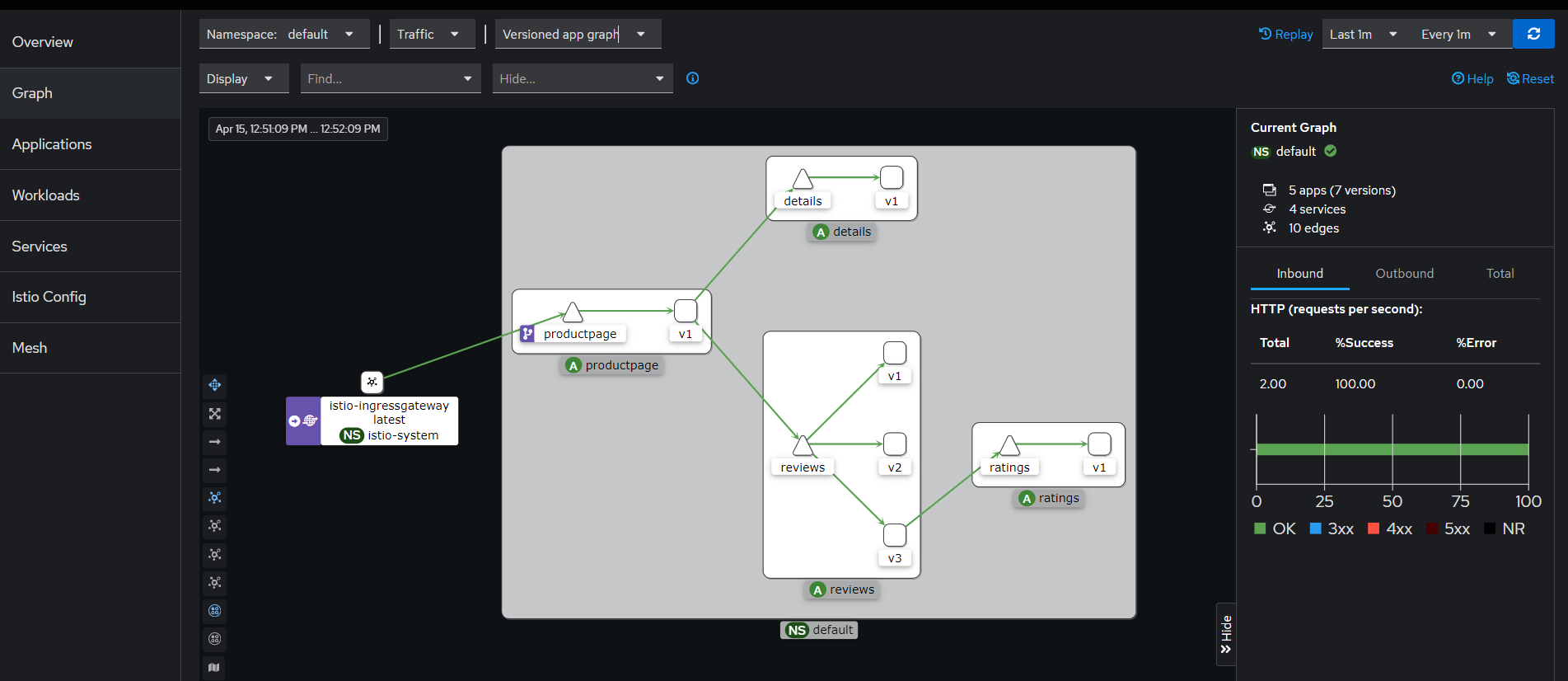

再次查看就可以看到流量分发情况了

image-20240415125224008

5. 卸载 Istio

istiod 中的’d’ 代表 daemon

istio ingress gateway istio ingress gateway 是进入集群的大门，外部要访问网格内部需要从这个 ingress gateway 进入

istio egress gateway istio egress gateway 是出去集群的大门。流量出去的时候走这 卸载 istio

以下命令卸载 Istio 并删除所有相关资源

1
2

kubectl delete -f samples/addons
istioctl x uninstall --purge -y

删除 namespace

1

kubectl delete namespace istio-system

移除之前打的 label

1

kubectl label namespace default istio-injection-

参考文档：

Licensed under CC BY-NC-SA 4.0
最后更新于 Jan 06, 2025 05:52 UTC
comments powered by Disqus
© 2020 - 2025 卡巴斯之殇
Built with Hugo
主题 Stack 由 Jimmy 设计
#׷
Caret Up
