环境

1
2
3

CERTS_DIR=/usr/share/elasticsearch/config/certificates
ELASTIC_PASSWORD=es123456
VERSION=7.16.2

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135

version: '2.2'

services:
  es01:
    image: elasticsearch:${VERSION}
    container_name: es01
    restart: always
    environment:
      - node.name=es01
      - cluster.name=es-docker-cluster
      - discovery.seed_hosts=es02,es03
      - cluster.initial_master_nodes=es01,es02,es03
      - bootstrap.memory_lock=true
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
      - ELASTIC_PASSWORD=${ELASTIC_PASSWORD}
      - xpack.license.self_generated.type=trial
      - xpack.security.enabled=true
      - xpack.security.http.ssl.enabled=true
      - xpack.security.http.ssl.key=$CERTS_DIR/es01/es01.key
      - xpack.security.http.ssl.certificate_authorities=$CERTS_DIR/ca/ca.crt
      - xpack.security.http.ssl.certificate=$CERTS_DIR/es01/es01.crt
      - xpack.security.transport.ssl.enabled=true
      - xpack.security.transport.ssl.verification_mode=certificate
      - xpack.security.transport.ssl.certificate_authorities=$CERTS_DIR/ca/ca.crt
      - xpack.security.transport.ssl.certificate=$CERTS_DIR/es01/es01.crt
      - xpack.security.transport.ssl.key=$CERTS_DIR/es01/es01.key
      - xpack.security.authc.token.enabled=true
    ulimits:
      memlock:
        soft: -1
        hard: -1
    volumes:
      - ./data01:/usr/share/elasticsearch/data
      - ./certs:$CERTS_DIR
    ports:
      - 9200:9200
    networks:
      - elastic

    healthcheck:
      test: curl --cacert $CERTS_DIR/ca/ca.crt -s https://localhost:9200 >/dev/null; if [[ $$? == 52 ]]; then echo 0; else echo 1; fi
      interval: 30s
      timeout: 10s
      retries: 5

  es02:
    image: elasticsearch:${VERSION}
    container_name: es02
    restart: always
    environment:
      - node.name=es02
      - cluster.name=es-docker-cluster
      - discovery.seed_hosts=es01,es03
      - cluster.initial_master_nodes=es01,es02,es03
      - bootstrap.memory_lock=true
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
      - xpack.license.self_generated.type=trial
      - xpack.security.enabled=true
      - xpack.security.http.ssl.enabled=true
      - xpack.security.http.ssl.key=$CERTS_DIR/es02/es02.key
      - xpack.security.http.ssl.certificate_authorities=$CERTS_DIR/ca/ca.crt
      - xpack.security.http.ssl.certificate=$CERTS_DIR/es02/es02.crt
      - xpack.security.transport.ssl.enabled=true
      - xpack.security.transport.ssl.verification_mode=certificate
      - xpack.security.transport.ssl.certificate_authorities=$CERTS_DIR/ca/ca.crt
      - xpack.security.transport.ssl.certificate=$CERTS_DIR/es02/es02.crt
      - xpack.security.transport.ssl.key=$CERTS_DIR/es02/es02.key
      - xpack.security.authc.token.enabled=true
    ulimits:
      memlock:
        soft: -1
        hard: -1
    volumes:
      - ./data02:/usr/share/elasticsearch/data
      - ./certs:$CERTS_DIR
    networks:
      - elastic

  es03:
    image: elasticsearch:${VERSION}
    container_name: es03
    restart: always
    environment:
      - node.name=es03
      - cluster.name=es-docker-cluster
      - discovery.seed_hosts=es01,es02
      - cluster.initial_master_nodes=es01,es02,es03
      - bootstrap.memory_lock=true
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
      - xpack.license.self_generated.type=trial
      - xpack.security.enabled=true
      - xpack.security.http.ssl.enabled=true
      - xpack.security.http.ssl.key=$CERTS_DIR/es03/es03.key
      - xpack.security.http.ssl.certificate_authorities=$CERTS_DIR/ca/ca.crt
      - xpack.security.http.ssl.certificate=$CERTS_DIR/es03/es03.crt
      - xpack.security.transport.ssl.enabled=true
      - xpack.security.transport.ssl.verification_mode=certificate
      - xpack.security.transport.ssl.certificate_authorities=$CERTS_DIR/ca/ca.crt
      - xpack.security.transport.ssl.certificate=$CERTS_DIR/es03/es03.crt
      - xpack.security.transport.ssl.key=$CERTS_DIR/es03/es03.key
      - xpack.security.authc.token.enabled=true
    ulimits:
      memlock:
        soft: -1
        hard: -1
    volumes:
      - ./data03:/usr/share/elasticsearch/data
      - ./certs:$CERTS_DIR
    networks:
      - elastic
  kib01:
    image: kibana:${VERSION}
    container_name: kib01
    restart: always
    depends_on: {"es01": {"condition": "service_healthy"}}
    ports:
      - 5601:5601
    environment:
      ELASTICSEARCH_URL: https://es01:9200
      ELASTICSEARCH_HOSTS: https://es01:9200
      ELASTICSEARCH_USERNAME: elastic
      ELASTICSEARCH_PASSWORD: es123456
      ELASTICSEARCH_SSL_CERTIFICATEAUTHORITIES: $CERTS_DIR/ca/ca.crt
      SERVER_SSL_ENABLED: "true"
      SERVER_SSL_KEY: $CERTS_DIR/kib01/kib01.key
      SERVER_SSL_CERTIFICATE: $CERTS_DIR/kib01/kib01.crt
    volumes:
      - ./certs:$CERTS_DIR
      # - ./kibana.yml:/usr/share/kibana/config/kibana.yml
    networks:
      - elastic

networks:
  elastic:
    driver: bridge

1

chmod 777 -R ./data01 ./data02 ./data03

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

[Systemd] ➜ curl --cacert certs/ca/ca.crt -s https://localhost:9200 -uelastic
Enter host password for user 'elastic':
{
  "name" : "es01",
  "cluster_name" : "es-docker-cluster",
  "cluster_uuid" : "ClBQP7G_TWa9heXMqYkmZA",
  "version" : {
    "number" : "7.16.2",
    "build_flavor" : "default",
    "build_type" : "docker",
    "build_hash" : "2b937c44140b6559905130a8650c64dbd0879cfb",
    "build_date" : "2021-12-18T19:42:46.604893745Z",
    "build_snapshot" : false,
    "lucene_version" : "8.10.1",
    "minimum_wire_compatibility_version" : "6.8.0",
    "minimum_index_compatibility_version" : "6.0.0-beta1"
  },
  "tagline" : "You Know, for Search"
}

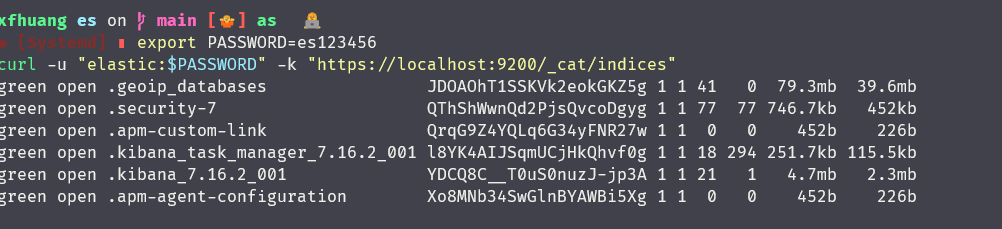

export PASSWORD=es123456
curl -u "elastic:$PASSWORD" -k "https://localhost:9200/_cat/indices"
