nacos-k8s prometheus

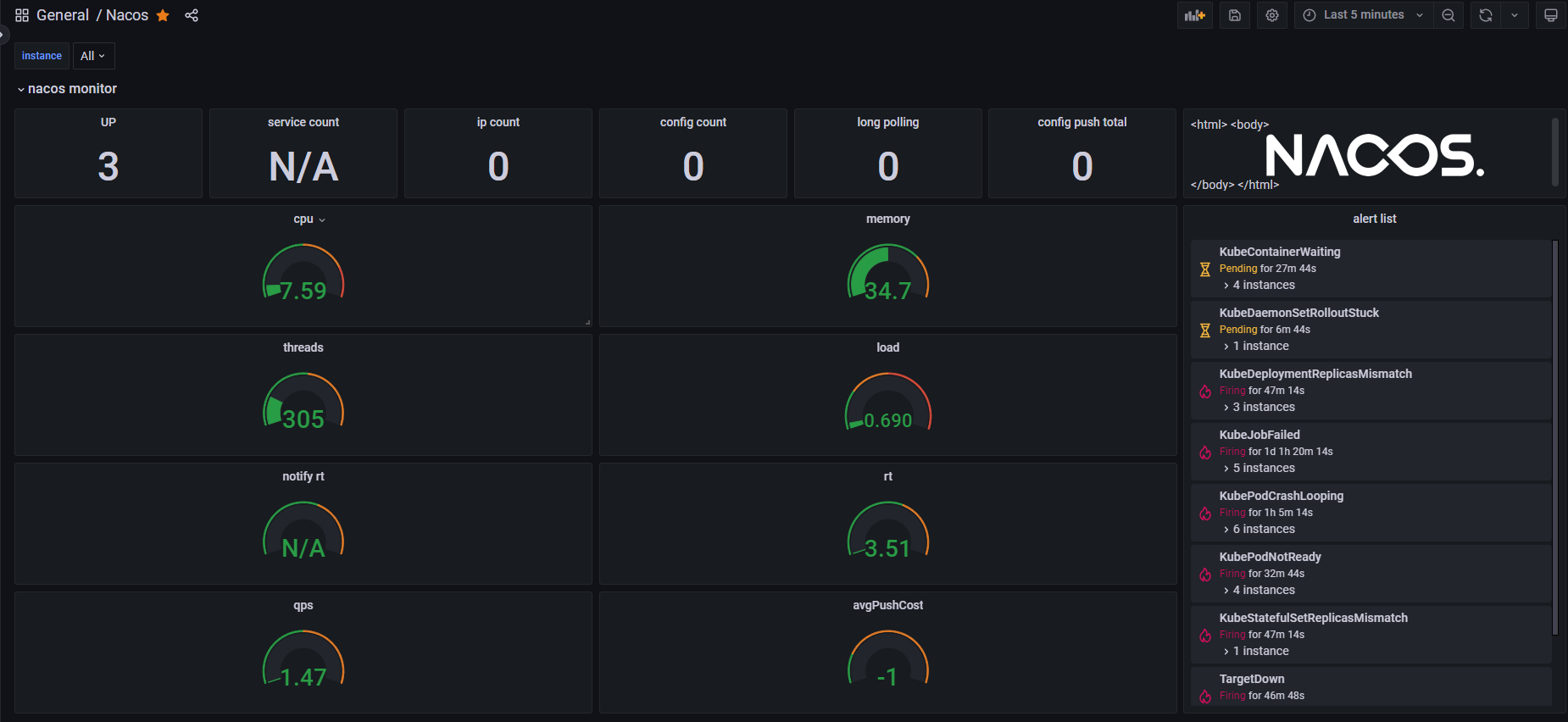

nacos-k8s 部署在 k8s 上，并接入到 prometheus 接入之后效果如下：出现的问题就是 nacos-k8s 不能一键部署成功，会爆出各种错误，不稳定。生产持久化部署。必须要使用持久卷，否则会出现数据丢失的情况

Nacos 的自动扩容缩容需要依赖持久卷,以及数据持久化也是一样,本例中使用的是 NFS 来使用 PVC.

1. 部署 nfs-csi (storageclass) 这里采用的是 Qist 大佬的官方 yaml

nfs-StorageClass 部署

2. 设置 nacos 数据库，本人用的本地数据库(必须)

创建数据库 nacos-test,执行下面建表语句

3.部署 nacos

3.1 本人下载官方 yaml 后,自己有所改动，主要修改 StorageClass 对应的 nfs-csi 环境

3.2 修改 configmap（修改成你的数据库配置）

3.3 本人使用 yaml

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164


apiVersion: v1
kind: ServiceAccount
metadata:
  name: nfs-client-provisioner
---
apiVersion: v1
kind: Service
metadata:
  name: nacos-headless
  labels:
    app: nacos-headless
spec:
  type: ClusterIP
  clusterIP: None
  ports:
    - port: 8848
      name: server
      targetPort: 8848
    - port: 9848
      name: client-rpc
      targetPort: 9848
    - port: 9849
      name: raft-rpc
      targetPort: 9849
      ## 兼容1.4.x版本的选举端口
    - port: 7848
      name: old-raft-rpc
      targetPort: 7848
  selector:
    app: nacos
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: nacos-cm
data:
  mysql.host: "192.168.0.20"
  mysql.db.name: "nacos_test"
  mysql.port: "3306"
  mysql.user: "shooter"
  mysql.password: "123456"
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: nacos
spec:
  serviceName: nacos-headless
  replicas: 3
  template:
    metadata:
      labels:
        app: nacos
      annotations:
        pod.alpha.kubernetes.io/initialized: "true"
    spec:
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                  - key: "app"
                    operator: In
                    values:
                      - nacos
              topologyKey: "kubernetes.io/hostname"
      serviceAccountName: nfs-client-provisioner
      initContainers:
        - name: peer-finder-plugin-install
          image: nacos/nacos-peer-finder-plugin:1.1
          imagePullPolicy: Always
          volumeMounts:
            - mountPath: /home/nacos/plugins/peer-finder
              name: data
              subPath: peer-finder
      containers:
        - name: nacos
          imagePullPolicy: Always
          image: nacos/nacos-server:latest
          resources:
            requests:
              memory: "1Gi"
              cpu: "500m"
          ports:
            - containerPort: 8848
              name: client-port
            - containerPort: 9848
              name: client-rpc
            - containerPort: 9849
              name: raft-rpc
            - containerPort: 7848
              name: old-raft-rpc
          env:
            - name: NACOS_REPLICAS
              value: "3"
            - name: SERVICE_NAME
              value: "nacos-headless"
            - name: DOMAIN_NAME
              value: "cluster.local"
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.namespace
            - name: MYSQL_SERVICE_HOST
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.host
            - name: MYSQL_SERVICE_DB_NAME
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.db.name
            - name: MYSQL_SERVICE_PORT
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.port
            - name: MYSQL_SERVICE_USER
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.user
            - name: MYSQL_SERVICE_PASSWORD
              valueFrom:
                configMapKeyRef:
                  name: nacos-cm
                  key: mysql.password
            - name: NACOS_SERVER_PORT
              value: "8848"
            - name: NACOS_APPLICATION_PORT
              value: "8848"
            - name: PREFER_HOST_MODE
              value: "hostname"
            - name: MODE
              value: "cluster"
              #value: "standalone" #单节点模式切这个即可
            - name: NACOS_SERVERS
              value: "nacos-0.nacos-headless.default.svc.cluster.local:8848 nacos-1.nacos-headless.default.svc.cluster.local:8848 nacos-2.nacos-headless.default.svc.cluster.local:8848"
          volumeMounts:
            - name: data
              mountPath: /home/nacos/plugins/peer-finder
              subPath: peer-finder
            - name: data
              mountPath: /home/nacos/data
              subPath: data
            - name: data
              mountPath: /home/nacos/logs
              subPath: logs
  volumeClaimTemplates:
    - metadata:
        name: data
        annotations:
          volume.beta.kubernetes.io/storage-class: "nfs-csi"
      spec:
        accessModes: [ "ReadWriteMany" ]
        storageClassName: nfs-csi
        resources:
          requests:
            storage: 2Gi
  selector:
    matchLabels:
      app: nacos

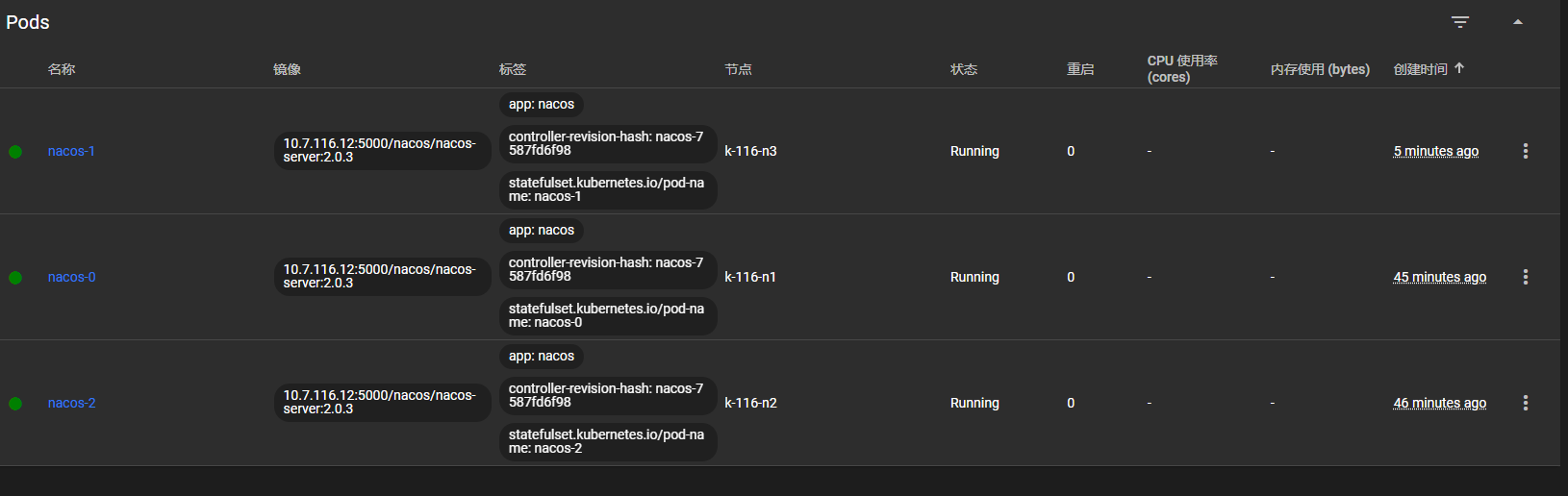

3.4 查看日志看 nacos 是否启动

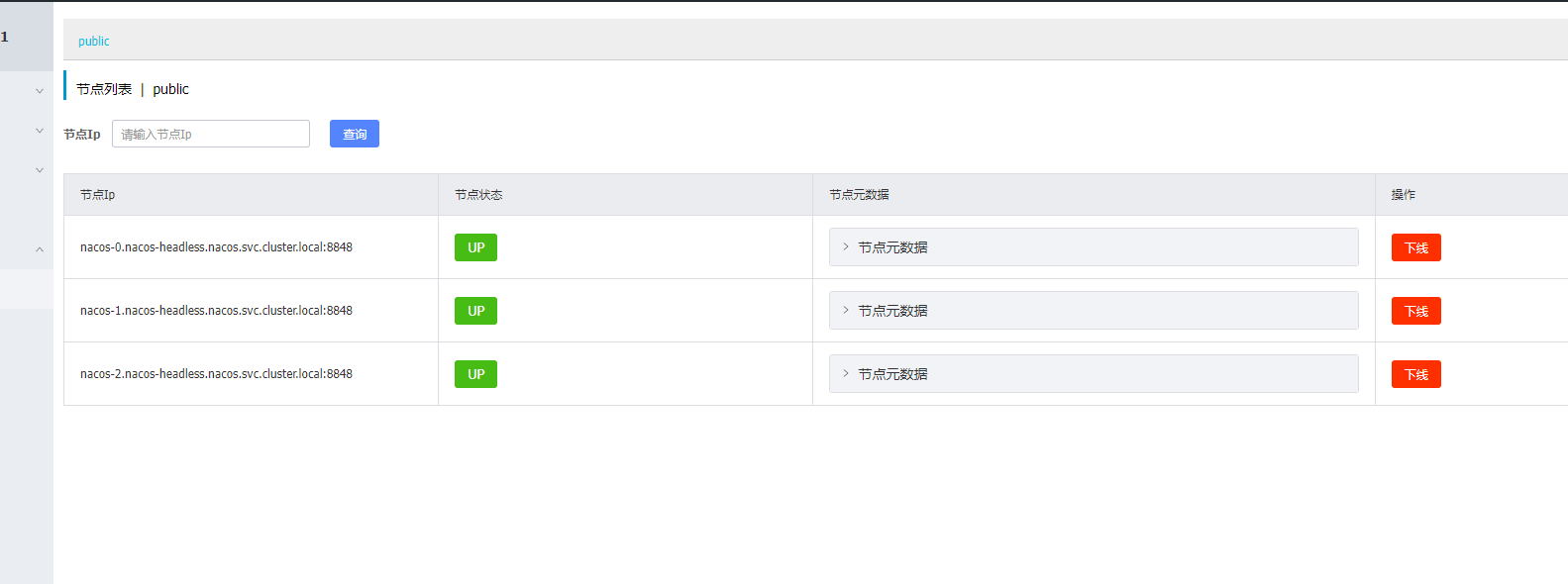

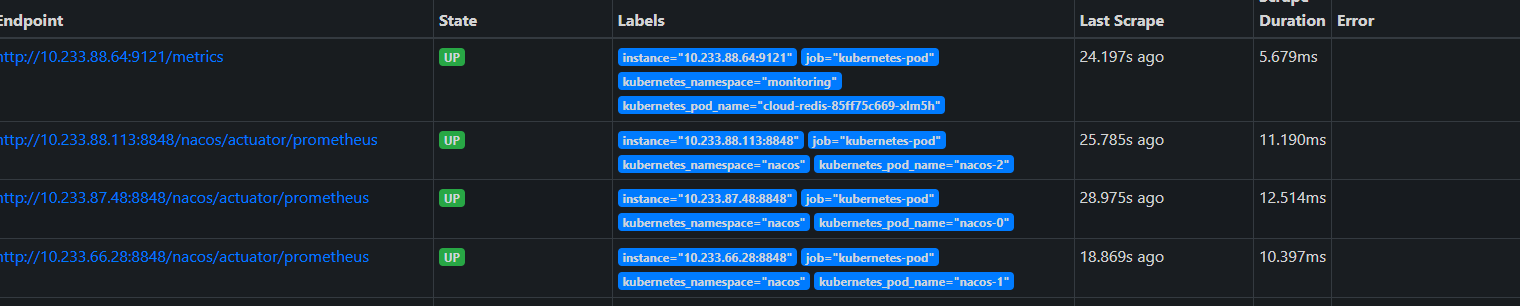

登入 nacos 界面查看如上图所示，可以看到节点正常，也可以通过 prometheus 查看是否正常节点正常采集。

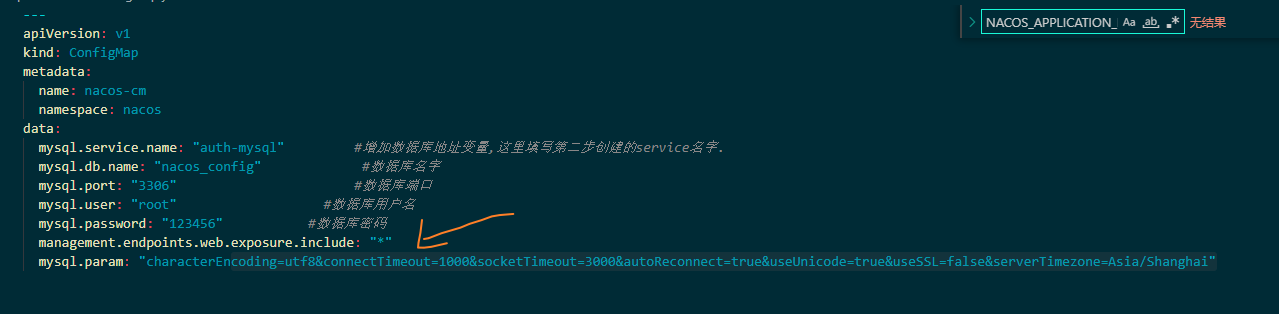

nacos 开启 prometheus 采集
